For customers in corrugated paper boxes project  to improve printing quality on corrugate paper boxes production, Superior printing quality, compared to traditional printing module on corrugated paperboard production line.


For better printing corrugate paper boxes only, for better corrugate paper boxes packaging experience

Description Parameters Details Related machinery
Product Description

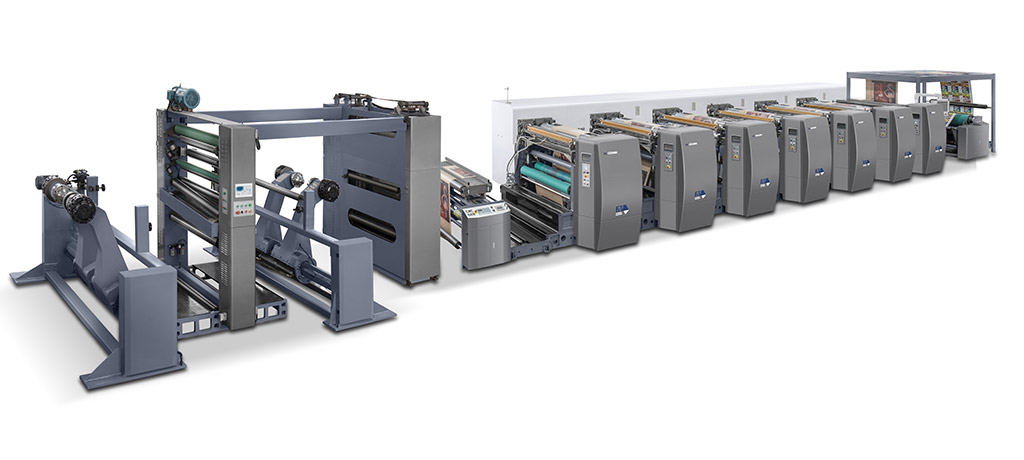

Specially designed for quality corrugated paper boxes pre-print printing production, wide web printing, big printing repeats,fast printing speed, high quality printing.

Product Parameters
Specification 1450 1650 1850 2250
Max.Web width 1450mm 1650mm 1850mm 2250mm
Max.Printing width 1450mm 1650mm 1850mm 2250mm
Printing repeat length 600-1600mm 600-1600mm 600-1600mm 600-1600mm
Max.Unwinder diameter 1524mm 1524mm 1524mm 1524mm
Max.Rewinder diameter 1524mm 1524mm 1524mm 1524mm
Gearing 1/4cp 1/4cp 1/4cp 1/4cp
Max printing speed 160-220m/min 160-220m/min 160-220m/min 160-220m/min
Diameter of web roller 100mm 100mm 100mm 100mm
Drying mode a.Hot Air Drying   b.IR Drying   c.UV Drying
Ink used a.Water Based Ink     b.UV Ink
Power requirement 380V 3PH 50Hz
Substrate 120-300gsm Chrome Paper,Paper Board,Kraft Paper,Coating paper, Composting paper



Note: as the products are developing day by day, the technical data are subject to change without notice.
