FM-FS-1050-1450

Flexographic Printing Machine (Full Servo Control Sleeve Type)

Designed specifically for customers with extremely high requirements for printing quality and printing colors, It is increasingly popular in the mass production of exquisite paper bags, shopping bags,gift bags, paper boxes,pharmaceutical paper boxes, paper cups, and other paper products.

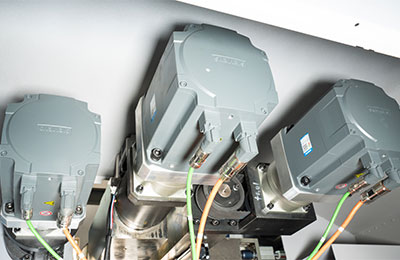

Each printing unit employs double sleeves and is equipped with SIEMENS servo control system to achieve intelligent automatic color registration, ensuring superior print quality and color performance.

Turrent rewinding system combined with non-stop unwinding system allows for faster printing speed, up to 350 meters per minute.

Get in Touch Download

Flexographic Printing Machine (Full servo control sleeve type)

Description Parameters Details Related machinery

Product Description

Key Features:

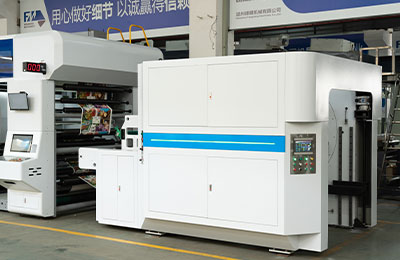

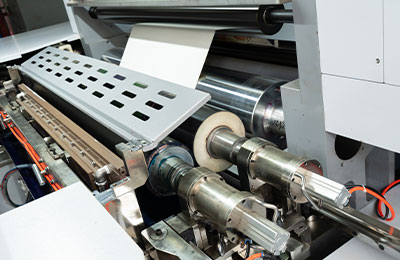

1. Turret-type winding for faster winding and printing speeds.

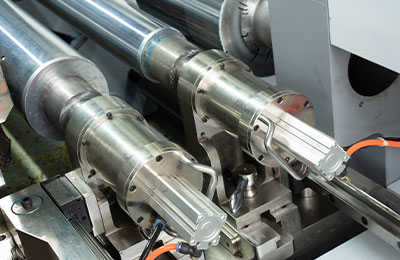

2. Both anilox and printing rollers are sleeve-type, facilitating job rotation and replacement.

3. Sleeve-type plate rollers allow for quick and easy plate changes, handling orders of various sizes.

4. Petal-shaped structure design ensures stable printing pressure, reliable and stable operation, and high printing speed.

5. Full servo motor drive eliminates limitations on printing repeat length due to tooth pitch, broadening its applicability.

6. Both water-based and UV inks are available; operators can select ink types or mix them according to the requirements of the printed products to accommodate a wider range of printing patterns and materials.

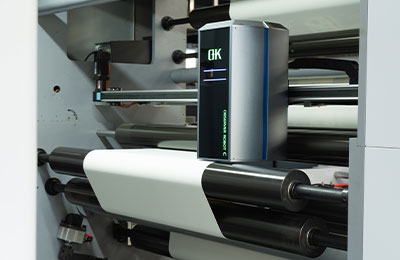

7. Digital full inspection, color matching, and pre-printing functions reduce reliance on operator skills and improve printing yield.

Product Parameters

Max.Web width	1060mm	1160mm	1260mm	1360mm	1460mm
Max.Printing width	1050mm	1150mm	1250mm	1350mm	1450mm
Pringting repeat	380-1200mm	380-1200mm	380-1200mm	380-1200mm	380-1200mm
Max. Unwinder diameter	1524mm	1524mm	1524mm	1524mm	1524mm
Max. Rewinder diameter	1524mm	1524mm	1524mm	1524mm	1524mm
Max printing speed	350m/min	350m/min	350m/min	350m/min	350m/min
Drying mode	a.Hot Air Drying b.IR Drying c.UVLED Drying d.Natural Gas
Ink used	a.Water-based ink b.UV ink
Power requirement	380V 3PH 50Hz
Substrate	Copy paper,80-400gsm Art Paper,Paper Board,Kraft Paper,Coating paper,Composing paper
Applicable material weight	30gsm-350gsm
Thickness of Plate	1.7mm
Rack of Machine	Whole Metal Alloy Casting Wall Panel
Accuracy of Registration	a. When the machine is running at a uniform speed, the printing accuracy is±0.1mm b. When printing speed accelerates from 10meter/minite to 180meter/minite, the printing accuracy is±0.15mm,When printing speed decelerates from 180mmin to 10m/min,the printing accuracy is±0.15mm.
The range of Tensian Controler	(40-180)kg
The range of Tension Accuracy	+/-0.5kg
Plate cylinder sleeve mandrel diameter	108.342mm
Anilox roler sleevemandrel diameter	56.088mm
